Real-Time 2G/3G/LTE Arduino GPS Tracker + IoT Dashboard

Learn how to make a powerful Arduino GPS tracker that posts data to the cloud via LTE CAT-M and view data graphically on IoT dashboards!

IntermediateProtip1 hour40,431
Real-Time 2G/3G/LTE Arduino GPS Tracker + IoT Dashboard

Things used in this project

Hardware components

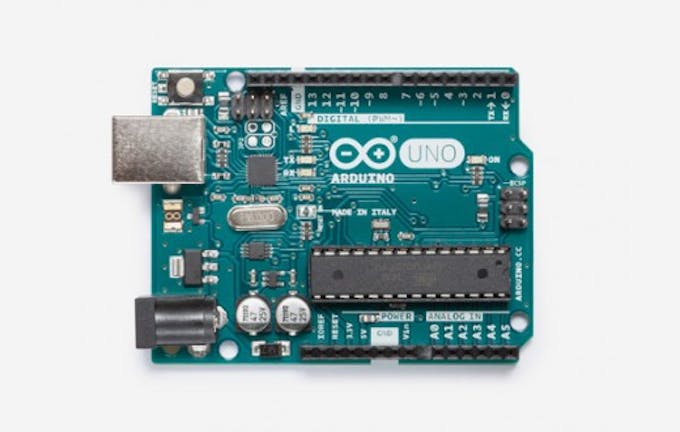

Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
You can also use Arduino Mega or Leonardo!
×1
Botletics SIM7000 Shield
This shield will include an LTE/GNSS antenna, stacking female headers, and Hologram global SIM card and promo code!
×1
Hologram Global IoT SIM Card
Hologram Global IoT SIM Card
The developer SIM card comes with 1MB free data per month! Note: this is included Botletics SIM7000 Shield
×1
Car USB adapter
Any 5V USB adapter with which you can power up your Arduino in your car! You could also just use a battery instead.
×1

Software apps and online services

Arduino IDE
Arduino IDE
ThingsBoard.io
Amazing IoT dashboard for viewing real time and historical data visually!

Story

Read more

Code

SIM7000 LTE Shield Github Repo

This repo includes all the documentation and example code you'll need for this tutorial!

Credits

Timothy Woo

Timothy Woo

7 projects • 64 followers
I'm a young engineer with a passion for DIY and electronics! My motto is "Learn to share, share to learn!"
Thanks to Adafruit.
