Seeed Studio GPRS Shield v2 Using AT Commands

This example walks through connecting a Seeed Studio GPRS Shield to the Hologram cellular network using raw AT commands.

IntermediateProtip1 hour3,095
Seeed Studio GPRS Shield v2 Using AT Commands

Things used in this project

Hardware components

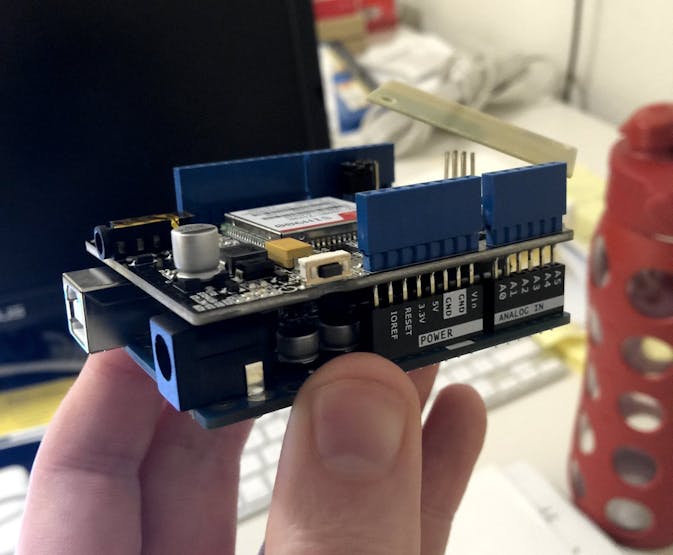

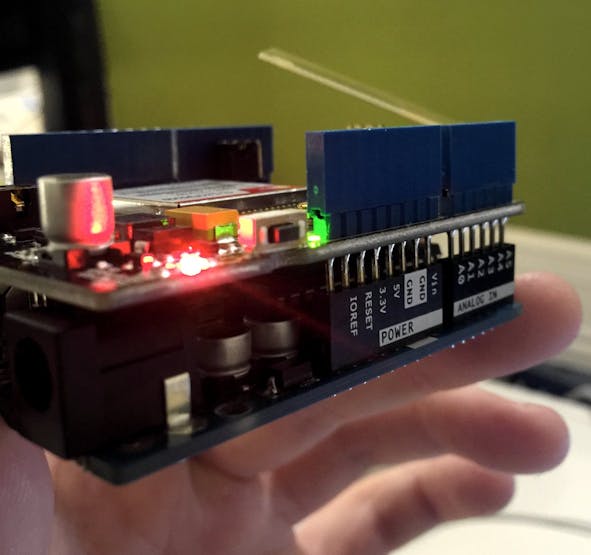

Seeed GPRS Shield v2
×1

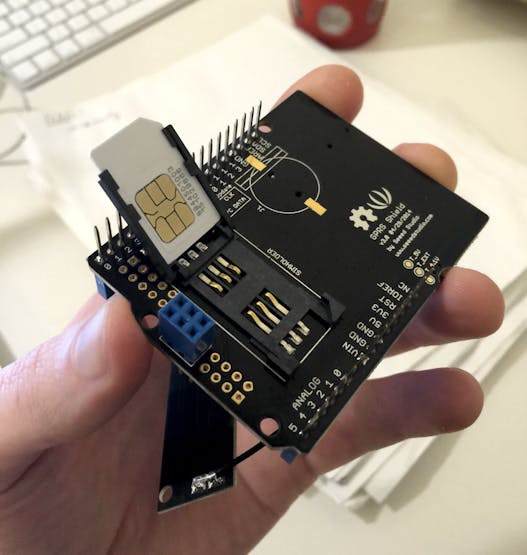

Hologram Global IoT SIM Card
Hologram Global IoT SIM Card
×1
Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1

Story

Read more

Code

Code snippet #1

C/C++
Arduino sketch showing raw AT commands for a Seed Studio GPRS Shield with a Hologram.io SIM
/*
Note: this code is a demo for how to use a gprs shield to send
an http request to a test website (using the Hologram APN).

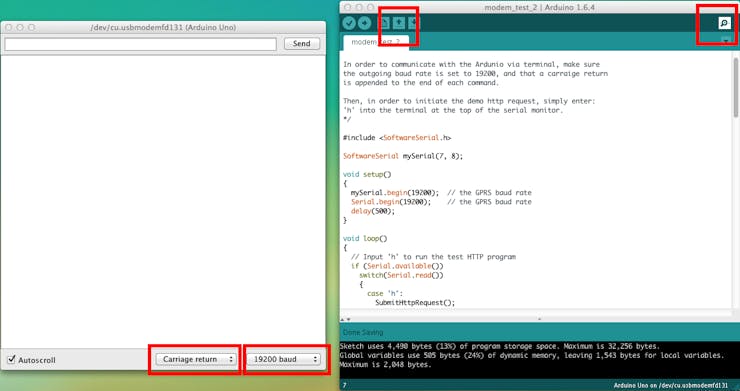

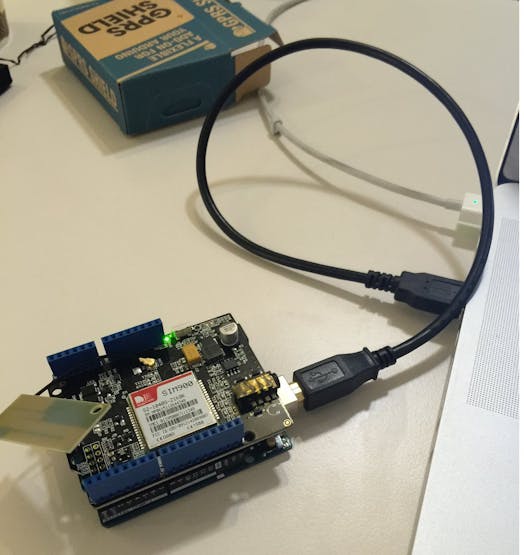

To communicate with the Arduino via terminal, set
the outgoing baud rate to 19200, and set line endings to
carriage return.

Then, in order to initiate the demo http request, enter
'h' into the terminal at the top of the serial monitor.
*/

#include <SoftwareSerial.h>

SoftwareSerial mySerial(7, 8);

void setup()
{
  mySerial.begin(19200); // the GPRS baud rate
  Serial.begin(19200); // the GPRS baud rate
  delay(500);
}

void loop()
{
  // Input 'h' to run the test HTTP program
  if (Serial.available())
    switch(Serial.read())
    {
      case 'h':
        SubmitHttpRequest();
        break;
    }
  if (mySerial.available())
    Serial.write(mySerial.read());
}

// SubmitHttpRequest()
//
// Note: the time of the delays are very important
void SubmitHttpRequest()
{
  // Query signal strength of device
  mySerial.println("AT+CSQ");
  delay(100);

  ShowSerialData();

  // Check the status of Packet service attach. '0' implies device is not attached and '1' implies device is attached.
  mySerial.println("AT+CGATT?");
  delay(100);

  ShowSerialData();

  // Set the SAPBR, the connection type is using gprs
  mySerial.println("AT+SAPBR=3,1,\"CONTYPE\",\"GPRS\"");
  delay(1000);

  ShowSerialData();

  // Set the APN
  mySerial.println("AT+SAPBR=3,1,\"APN\",\"hologram\"");
  delay(4000);

  ShowSerialData();

  // Set the SAPBR, for detail you can refer to the AT command manual
  mySerial.println("AT+SAPBR=1,1");
  delay(2000);

  ShowSerialData();

  // Init the HTTP request
  mySerial.println("AT+HTTPINIT");

  delay(2000);
  ShowSerialData();

  // Set HTTP params, the second param is the website to request
  mySerial.println("AT+HTTPPARA=\"URL\",\"hologram.io/test.html\"");
  delay(1000);

  ShowSerialData();

  //Set the context ID
  mySerial.println("AT+HTTPPARA=\"CID\",1");
  delay(1000);

  ShowSerialData();

  // Submit the request
  mySerial.println("AT+HTTPACTION=0");
  // The delay is very important, the delay time is base on the
  // return time from the website, if the return data is very
  // large, the time required might be longer.
  delay(10000);

  ShowSerialData();

  // Read the data from the accessed website
  mySerial.println("AT+HTTPREAD");
  delay(10000);

  ShowSerialData();

  // Close the HTTP connection and display the data
  mySerial.println("AT+HTTPTERM");
  delay(100);
}

// ShowSerialData()
// This is to show the data from gprs shield, to help
// see how the gprs shield submits an http request.
void ShowSerialData()
{
  while(mySerial.available()!=0)
    Serial.write(mySerial.read());
}
